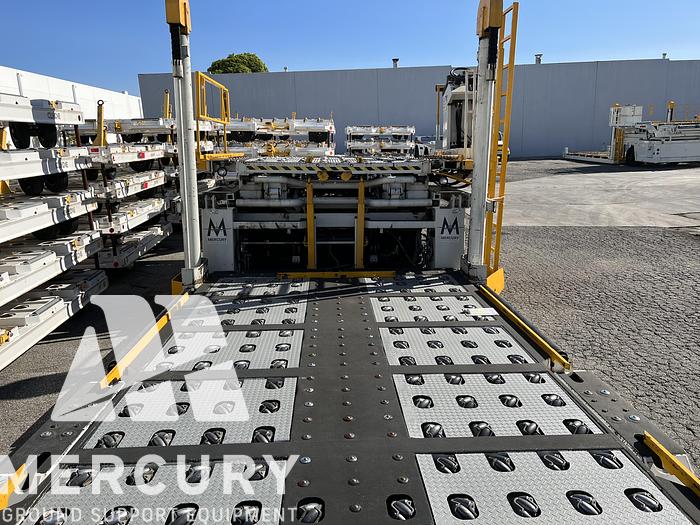

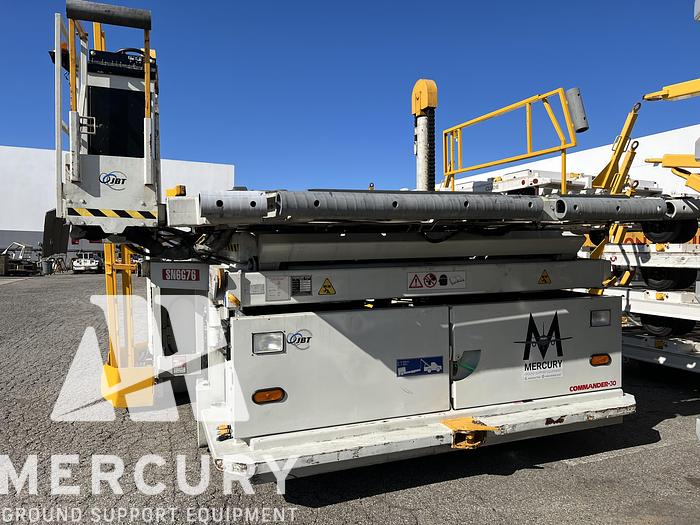

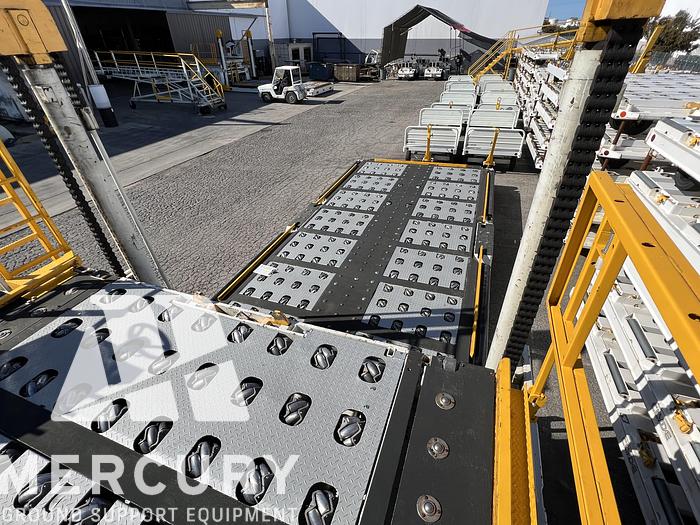

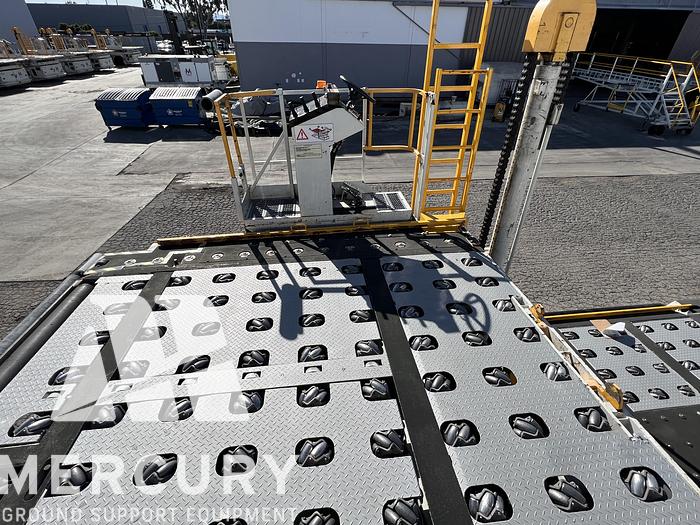

1996 JBT Commander 30 Cargo Loader

1996 JBT Commander 30 Cargo Loader

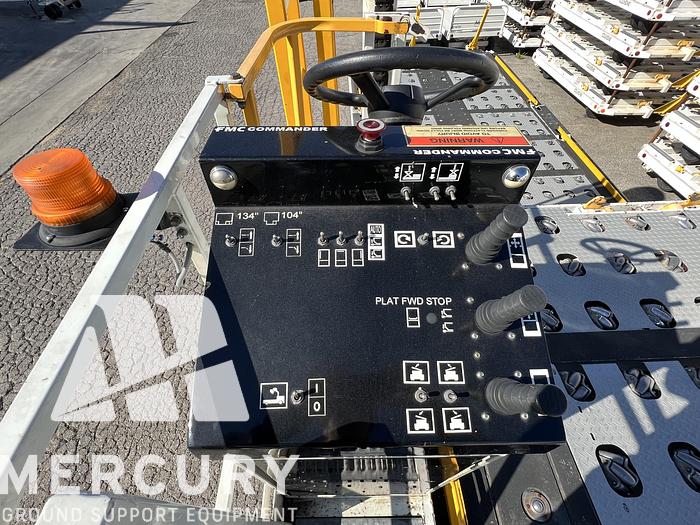

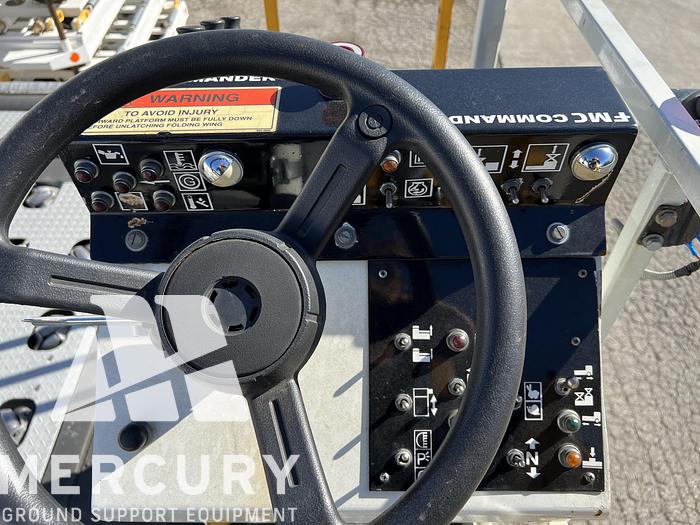

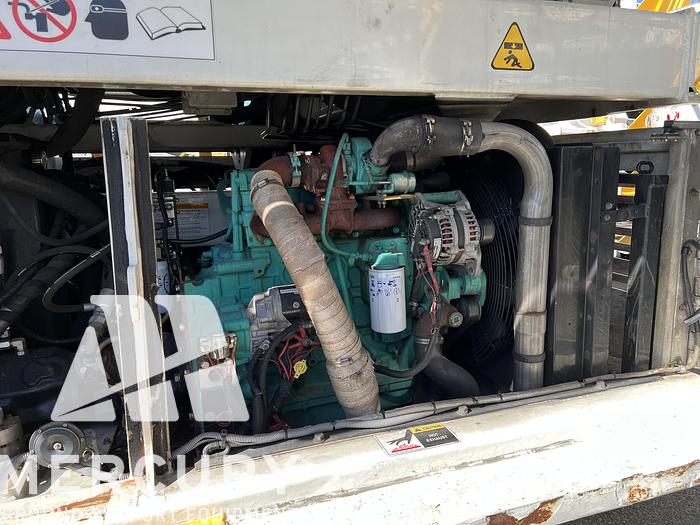

The Commander 30 cargo loader handles all aircraft loading needs. It has a platform lift capacity of 15,000 kg (33,000 lbs.). Some features include a HeliRoll convey system, failsafe control system, a swing out power module and an Onboard Diagnostic System (ODS) which provides numerous benefits including lower maintenance costs per hour of operation.

• 15,000 kg (33,000 lbs.) lift capacity
• Operating Height (Maximum) – 5.59 m (220 in.)
• Operating Height Bridge (Minimum) – 1.93 m (76 in.)
• Operating Height – Rear Platform (Minimum) – 0.49 m (19.5 in.)
• Lift Speed (Rear Platform) – 15.2 m/min (50 fpm)
• Lift Speed (Bridge) – 4.5 to 5.5 m/min (15 to 18 fpm)

The Commander 30 can service these aircrafts:

• Main Deck – B727, B737, B747, B757, B767, B777, A-300, A-310, A-330, DC-8, DC-10, MD11
• Lower Deck – B747, B757, B767, B777, B787, A-300, A-310, A-330, A340, A-380, DC-10, MD11
